Tên thiết bị:  Lenovo ThinkPad Universal Thunderbolt 4 Smart Dock (40B00135CN) hỗ trợ 4K 5K 8K

Model:   40B00135CN

Thương hiệu:  Lenovo Thinkpad

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Thời gian đặt hàng: 1 - 2 ngày



Hình ảnh thiết bị như hình chụp

  • Thunderbolt 4 Host Connection
  • 2 x DisplayPort / 1 x HDMI Ports
  • Supports One 8K or Four 4K Monitors
  • 4 x USB 3.2 Gen 2 Type-A / 1 x Type-C
  • 1 x Thunderbolt 4 Port
  • 1 x Gigabit Ethernet Port
  • 1 x 3.5mm Audio Jack
  • Up to 100W Power Delivery
  • VESA Mount Compatible

Lenovo 40B00135US Overview

Boost your productivity by connecting the Lenovo ThinkPad Thunderbolt 3 WorkStation Dock Gen 2 to your compatible laptop. Although this dock is meant to complement select 2019 and 2018 ThinkPad and Mobile Workstation laptops, it will work with most Thunderbolt 3 compatible systems to transfer data at up to 40 Gb/s. The workstation dock also supports 170W power delivery with compatible devices while providing up to 65W to your laptop using the included Y-splitter cable. Connect a 5K display or up to three external monitors through the two HDMI ports and two DisplayPort 1.4 outputs to work on large projects and enhance your multitasking efficiency. Other features include five 10 Gb/s USB 3.1 Gen 2 ports, a Gigabit Ethernet port, and a 3.5mm audio port that delivers clear communications with compatible headsets. The Lenovo ThinkPad Thunderbolt 3 WorkStation Dock Gen 2 is designed to work with Windows 7 and 10 with Mac compatibility.

USB 3.1 Gen 2

Doubling the speed of its predecessor, USB 3.1 Gen 2 features a maximum throughput of 10 Gb/s when used with compatible devices.

Lenovo 40B00135US Specs

Connections
USB 4 x USB 3.1 / USB 3.2 Gen 2 Type-A
1 x USB 3.1 / USB 3.2 Gen 2 Type-C
Thunderbolt 1 x Thunderbolt 4 (100 W)
Ethernet 1 x RJ45 (10/100/1000 Mb/s)
FireWire None
Display 1 x HDMI 2.1
2 x DisplayPort 1.4
Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Combo
Memory Card Slots None
Host Connections
System Connection 1 x Thunderbolt 4 Type-C Female
Connection Type Detachable Cable
Interface Max Data Rate 40 Gb/s
General
Number of Displays Supported 4
Maximum Resolution Supported 7680 x 4320 at 30 Hz (Single Display)
3840 x 2160 at 60 Hz (Dual Display)
3840 x 2160 at 60 Hz (Triple Display)
3840 x 2160 at 60 Hz (Quad Display)
Compatibility Lenovo ThinkPad
Operating System Support Windows
UASP Support Yes
Power
Power Source AC Adapter
Power Port Barrel Connector (Unspecified Diameter)
DC Input Power 20 VDC at 6.75 A
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 95%
Physical
Lock Slot Yes, Kensington
Dimensions 8.7 x 3.1 x 1.2" / 220 x 80 x 30 mm
Weight 0.99 lb / 0.45 kg
Packaging Info
Package Weight 2.815 lb
Box Dimensions (LxWxH) 10.9 x 6.4 x 3"

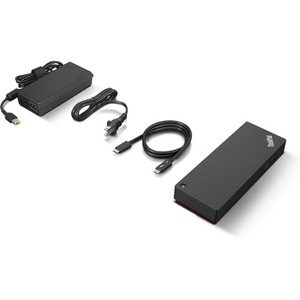

In the Box

  • Lenovo ThinkPad Universal Thunderbolt 4 Dock
  • 135W Power Adapter
  • Power Cable
  • Thunderbolt Cable
  • Limited 1-Year Warranty
