Tên thiết bị: Lenovo ThinkPad USB Type-C Dock Gen 2 (40AS0090US)
Model: 40AS0090US
Thương hiệu: Lenovo Thinkpad
Tình trạng: đóng hộp, hàng mới, chính hãng 100%
Thời gian đặt hàng: 1 - 2 ngày
Hình ảnh thiết bị như hình chụp
Detachable USB Type-C Cable
1 x USB 3.1 Gen 2 Type-C Port
3 x USB 3.1 Gen 2 Type-A Ports
2 x USB 2.0 Type-A Ports
2 x DisplayPort 1.4 | 1 x HDMI 2.0
1 x Gigabit Ethernet Port
1 x 3.5mm Headphone/Mic Jack
Supports Resolutions up to 3840 x 2160
Supports Three External Displays
Windows Compatible
Lenovo 40AS0090US Overview
The ThinkPad USB Type-C Dock Gen 2 from Lenovo is a one-cable universal docking solution that expands the connectivity options for USB Type-C and Thunderbolt 3 systems. It connects to host systems running Windows 10 and 7 using an integrated USB 3.1 Gen 2 Type-C port and an included USB Type-C cable that may be detached when the dock is not in use.
Lenovo built this dock with one USB 3.1 Gen 2 Type-C port, two USB 3.1 Gen 2 Type-A ports, two USB 2.0 Type-A ports, one Gigabit Ethernet port, and one 3.5mm headphone/microphone combo jack. There is also a third USB 3.1 Gen 2 Type-A port that in addition to peripheral connectivity, provides 5V / 3A of charging power for compatible devices. However, the charging power provided by this port will only be active if the dock is connected to the included 90W AC adapter.
Also featured are two DisplayPort 1.4 and one HDMI 2.0 ports which support up to three displays, depending on your system's configuration. If your system's USB Type-C or Thunderbolt 3 port supports DisplayPort 1.4, the dock supports one 3840 x 2160 / 60 Hz display, two 3840 x 2160 / 30 Hz displays, or three 1920 x 1080 / 60 Hz displays. If your system supports DisplayPort 1.2, the dock supports one 3840 x 2160 / 30 Hz display or two 1920 x 1080 / 60 Hz displays.
General Features
One Connection, No Limitations
Think of all the time you'd save if you could connect more your peripherals at once, transfer USB data at speeds up to 10 Gb/s, and have access to a stable, stress-free wired network connection.
Ultra HD 4K or Multiple Displays
Now you can experience vivid UHD 4K / 60 Hz on a single screen or take multitasking to the next level with dual UHD 4K / 30 Hz displays or triple 1080 / 60 Hz displays.
Ready for Your Command
Ideal for being the centerpiece of your workspace, control your ThinkPad systems with PXE Boot, System Wake on LAN from sleep mode, hibernate mode, and power off mode. It also supports passing ThinkPad MAC address through the dock.
Lenovo 40AS0090US SpecsConnections
USB 1 x USB 3.1 / USB 3.2 Gen 2 Type-C
1 x USB 3.1 / USB 3.2 Gen 2 Type-A (15 W)
2 x USB 3.1 / USB 3.2 Gen 2 Type-A
2 x USB 2.0 Type-A
Thunderbolt None
Ethernet 1 x RJ45 (10/100/1000 Mb/s)
FireWire None
Display 2 x DisplayPort 1.4
1 x HDMI 2.0
Audio 1 x 1/8" / 3.5 mm Headphone/Microphone Combo
Memory Card Slots None
Host Connections
System Connection 1 x USB 3.1 / USB 3.2 Gen 2 Type-C Female
Connection Type Detachable Cable
Interface Max Data Rate 10 Gb/s
General
Number of Displays Supported 3
Maximum Resolution Supported 3840 x 2160 at 60 Hz (Single Display)
3840 x 2160 at 30 Hz (Dual Display)
1920 x 1080 at 60 Hz (Triple Display)
Operating System Support Windows
UASP Support No
Power
Power Source AC Adapter
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Environmental
Certifications BSMI, CB, CE, EAC, FCC, Kcc, RCM, TUV, VCCI, cUL, as per Manufacturer
Operating Temperature 32 to 95°F / 0 to 35°C
Storage Humidity 20 to 95%
Physical
Lock Slot Yes
Dimensions 6.73 x 3.15 x 1.21" / 171 x 80 x 30.75 mm
Weight 11.46 oz / 325 g
Packaging Info
Package Weight 2.065 lb
Box Dimensions (LxWxH)
8.2 x 6.2 x 3"

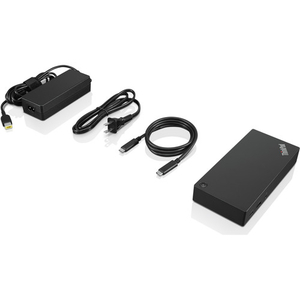

In the Box
Lenovo ThinkPad USB Type-C Dock Gen 2
USB Type-C Cable
Power cord
Lenovo ThinkPad 90W AC Adapter (Slim Tip)
