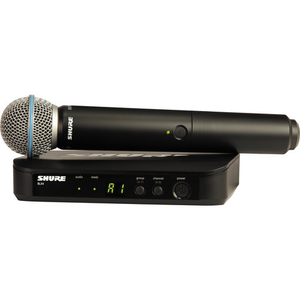

Bộ âm thanh không dây Shure BLX24 Handheld Wireless System With Beta 58A Mic (J10: 584 - 608 MHz)

 Product Highlights

    J10 Frequency Band
    BLX4 Wireless Receiver
    BLX2 Transmitter with Beta 58A Mic
    One-Touch QuickScan Frequency Selection
    Diversity Antennas
    300' Range of Operation
    Designed for Ease in Setup
    Up to 14 Hours of Battery Life
    2x AA Batteries Included

• BLX4 Single-Channel Wireless Receiver (J10: 584 - 608 MHz)



  The BLX4 Wireless Receiver from Shure is a single-channel receiver set to Shure's J10 frequency band and operates between 584 to 608 MHz. It has microprocessor-controlled internal antenna diversity for reduced signal interference and dropouts. The one-touch QuickScan frequency selection feature allows you to quickly locate the frequency with the least amount of interference available.

  Its front-panel dual-color LED status indicator displays green for normal levels and red when clipping for fast metering. It has an XLR output in additional to an instrument level ¼" output. The BLX4 can be used with up to 11 other compatible systems simultaneously per frequency band.



  UPC: 042406246248
• BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (J10: 584 - 608 MHz)



  The BLX2/58 Handheld Transmitter with Beta 58A Cartridge from Shure is tuned to Shure's J10 frequency band between 584 to 608 MHz and provides a 300' line of sight operating range. It is powered by two included AA batteries for up to 14 hours, and is compatible with Shure BLX wireless systems set to the same frequency band. A padded zipper case and microphone clip are included.





  BLX4 Single-Channel Wireless Receiver (J10: 584 - 608 MHz)

  Output	1x XLR Output 1x 1/4" (6.35 mm) Output
  Output Impedance	XLR: 200 ohms 1/4": 50 ohms
  Audio Output Level	XLR Connector: -27 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone) 1/4": -13 dBV into 100 kOhms Load (Reference +/-33 kHz with 1 kHz Tone)
  RF Sensitivity	-105 dBm for 12 dB SINAD, Typical
  Image Rejection	>50 dB, Typical
  Housing	Molded ABS
  Power Requirement	12 to 15 V DC @ 160 mA, Supplied by External Power Supply (Tip Positive)
  Dimensions (H x W x D)	1.5 x 7.4 x 4.1" (40 x 188 x 103 mm)
  Weight	8.5 oz (241 g)

  Packaging Info
  Box Dimensions (LxWxH)	13.6 x 11.9 x 4.0"

  BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (J10: 584 - 608 MHz)

  Transmitter
  Audio Input Level	0 dB Gain: -20 dBV Maximum -10 dB Gain: -10 dBV Maximum
  Gain Adjustment Range	10 dB
  RF Output	10 mW, Typical (Varies by Region)
  Power Requirement	2x LR6 AA Batteries, 1.5 V Alkaline
  Housing	Molded ABS
  Dimensions (Ø x L)	2.1 x 8.8" (53 x 224 mm)
  Weight	7.7 oz (218 g)

  Microphone
  Type	Dynamic (Moving Coil)
  Frequency Response	50 Hz to 16 kHz
  Polar Pattern	Supercardioid, rotationally symmetrical about microphone axis, uniform with frequency
  Output Level	Open Circuit Voltage: -51.5 dBV/Pa* (2.6 mV) *1 Pa = 94 dB SPL

  Packaging Info
  Box Dimensions (LxWxH)	11.2 x 5.3 x 3.2"





  In the Box

  Bundle Items

  BLX4 Single-Channel Wireless Receiver (J10: 584 - 608 MHz)

  Power Supply

  Limited 2-Year Warranty

  Microphone Clip Padded Zipper Case 2 x AA Batteries

  BLX2/B58 Handheld Wireless Transmitter with Beta 58A Microphone Cartridge (J10: 584 - 608 MHz)

  Limited 2-Year Warranty
