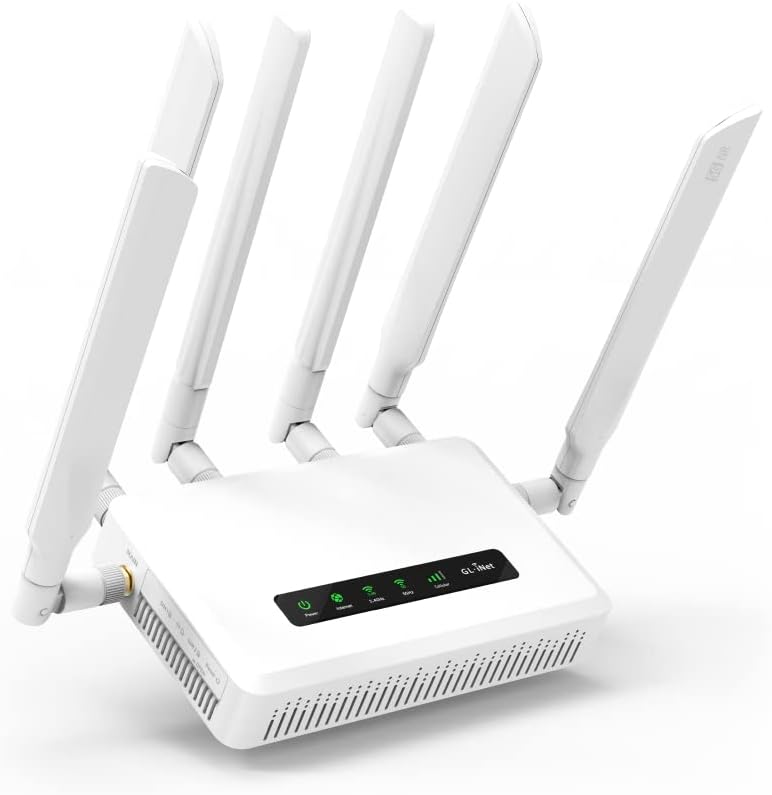

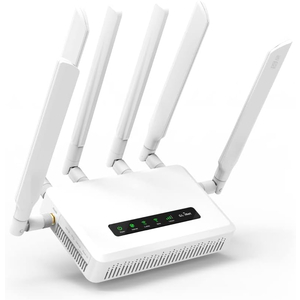

Bộ Internet di động GL.iNet GL-X3000 (Spitz AX) 5G NR AX3000 Cellular Gateway Router, Wi-Fi 6, Multi-WAN, & Detachable Antennas, Dual-SIM, OpenVPN & WireGuard Client/Server, OpenWrt, MU-MIMO, Secure RV Internet, IoT Device, CAT19...



Model:  GL.iNet GL-X3000

Thương hiệu:  GL.iNet

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Thời gian đặt hàng: 1 - 2 ngày

Hình ảnh thiết bị như hình chụp



About this item

  • 【Fast Wi-Fi 6 Cellular Router】GL-X3000 provides reliable cellular networks for remote access and high-speed Internet in urban areas with Wi-Fi speeds up to 574Mbps (2.4GHz) + 2402Mbps (5GHz). Supports MU-MIMO technology for simultaneous wireless network connections in different scenarios.

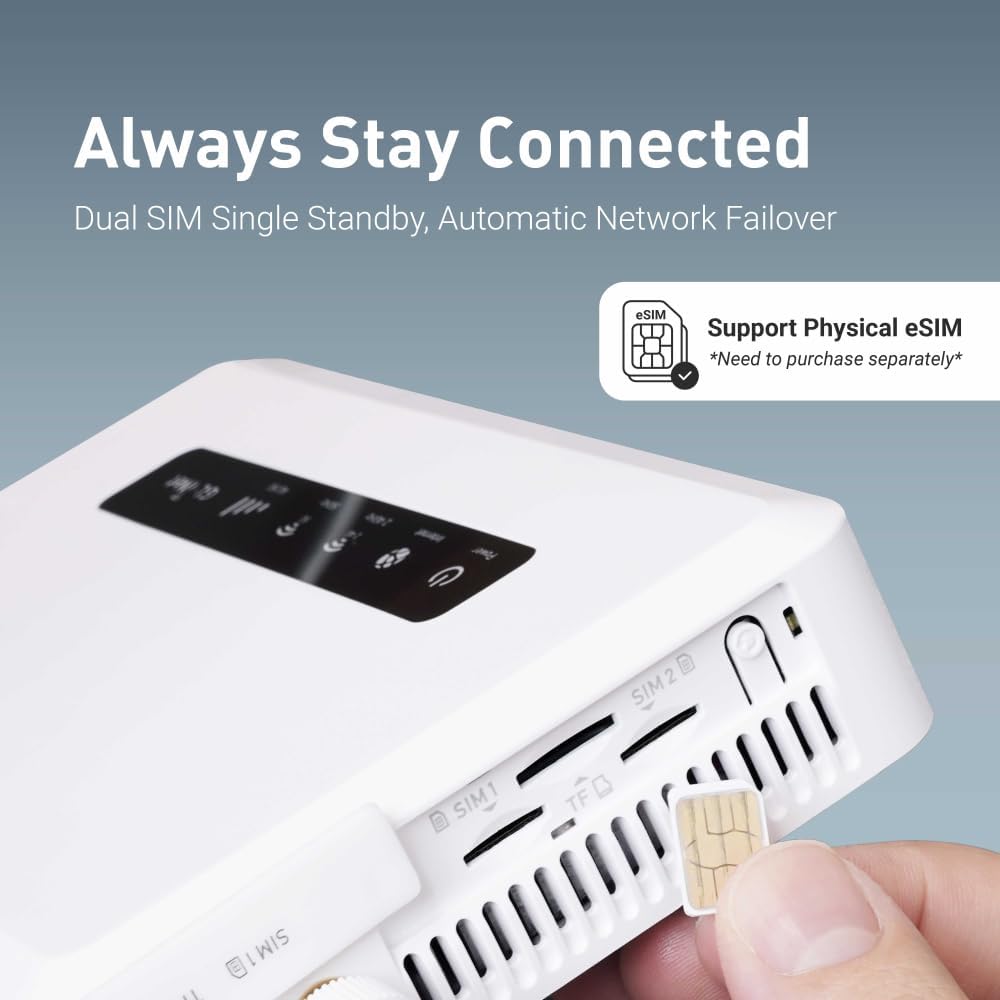

  • 【5G Network & Dual SIM Standby】Enjoy ultra-fast 5G speeds according to NSA and SA standards. Dual SIM flexibility to select the strongest and fastest ISP connection and automatic failover. Compatible with 4G LTE and 3G networks. AT&T and T-Mobile certified.
  • 【VPN Tunneling & Remote Access】Provides OpenVPN and WireGuard pre-installed to support over 30 VPN services and encrypts all network traffic within the connected network so that the network is secure when connecting to public Wi-Fi. Max. 150Mbps VPN Speed (OpenVPN); 300Mbps (WireGuard)
  • 【OpenWrt v21.02 Customizable】Spitz AX is supported by our proprietary OpenWrt based firmware (v21.02), providing over 5,000 plug-ins out of the box for advanced customization. With minimal inputs, you can easily access our code-free interface in the admin panel.
  • 【Powerful RV Deployment】Secure your network gateway in motorhomes and easily access multiple WAN connections with the GL-X3000's 6 detachable antennas and dual SIM card slots. For additional stability of your Internet services in remote areas, you can also connect to an extended GPS antenna or wired dome antenna of your choice.
  • 【Supports GL.iNet Physical eSIM Card】Simplifies use and is perfect for individual users. We offer intuitive profile management programs that allow you to edit (add/delete) profiles stored on the map. You can easily switch carriers and countries, ensuring seamless and adaptable connectivity worldwide. *You must purchase a physical eSIM card separately*Spitz AX (GL-X3000) cellular function does not dark

Reliable Cellular Networks in Rural Areas

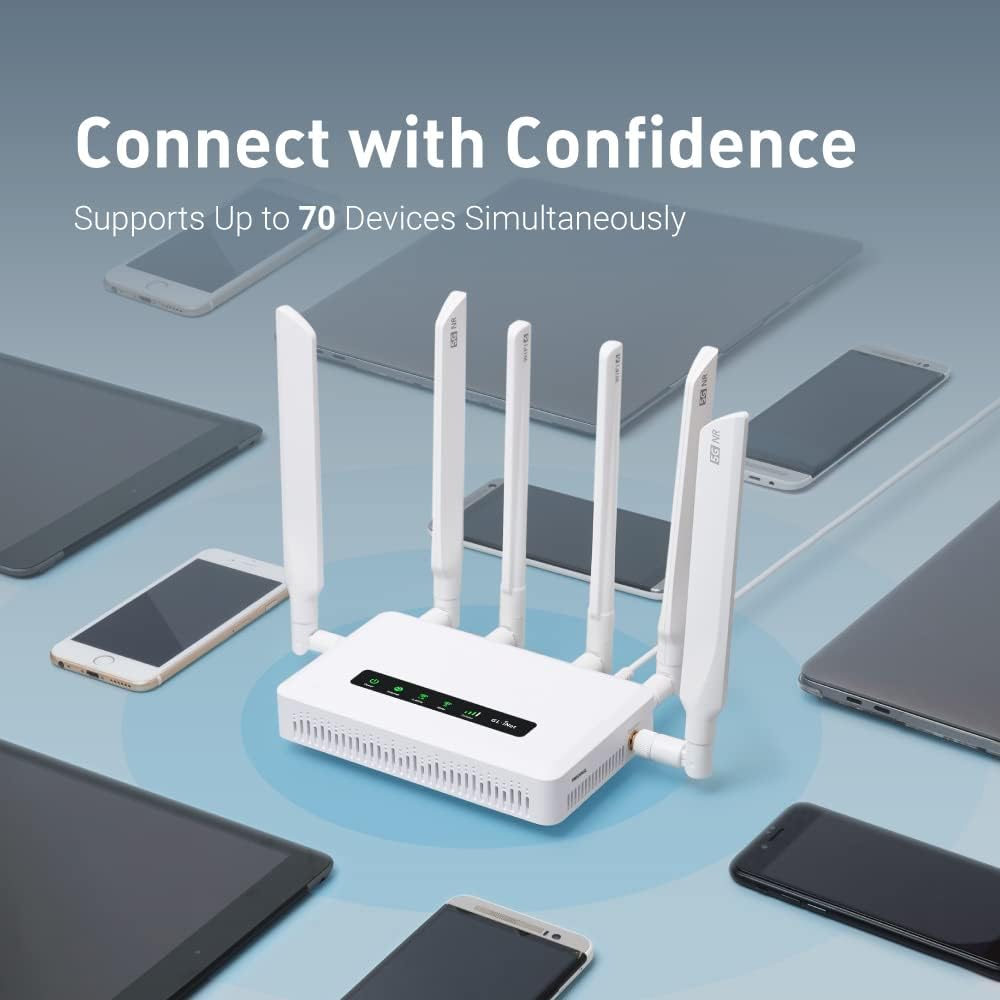

GL-X3000 is a Wi-Fi 6 cellular gateway designed to provide reliable cellular networks in remote locations and high speed internet in urban areas. It has six external antennas for long range connection, two SIM Cards for selecting between the ISP with stronger connections, and Multi-WAN between the WAN port, SIM Card, and Repeater.

Supports 5G NR & Multi-WAN
Dual-SIM, Single Modem
Wi-Fi 6 Max. 574 Mbps (2.4GHz) + 2402 Mbps (5GHz) Wi-Fi Speeds
OpenVPN speed up to 150 Mbps; WireGuard speed up to 300 Mbps

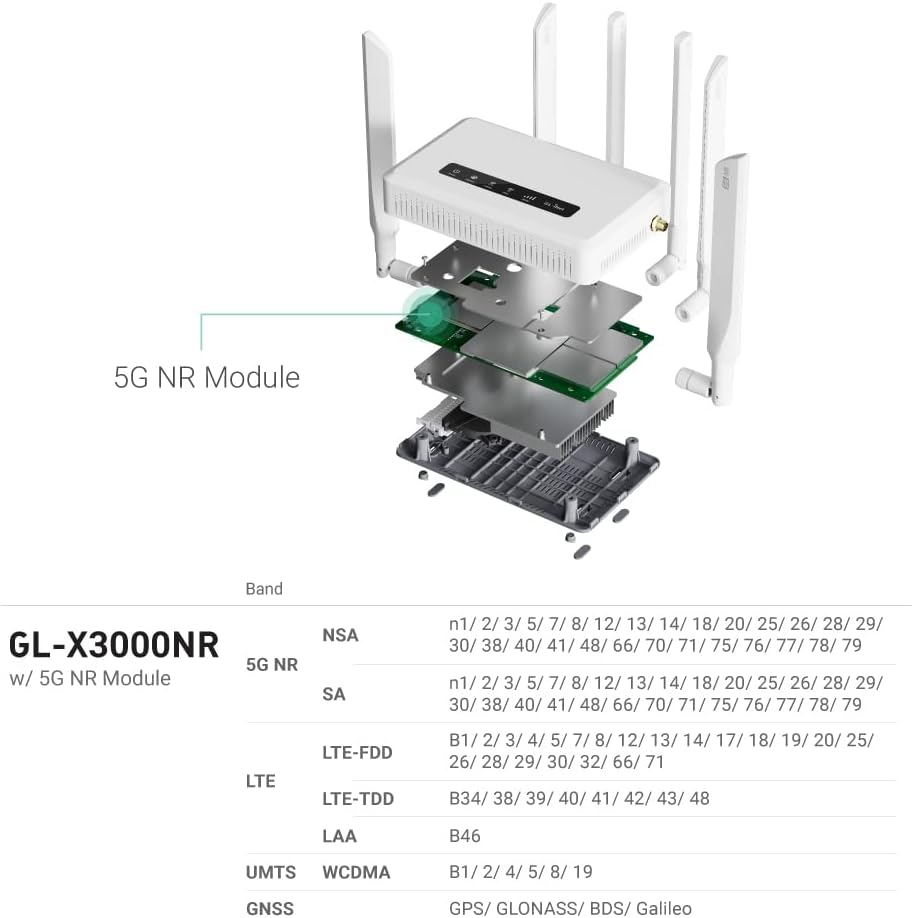

Module: RM520N-GL
5G NR NSA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
SA n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
LTE LTE-FDD B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71
LTE-TDD B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48
LAA B46
UMTS WCDMA B1/ 2/ 4/ 5/ 8/ 19
GNSS   GPS/ GLONASS/ BDS/ Galileo/ QZSS

Spitz AX (GL-X3000C16) 4G LTE Frequency Bands

Recreational Vehicles(RV) Deployment

Spitz AX is your reliable router on the road, working in an RV. Spitz AX allows you to access multiple WAN connectivity, switching easily between the WAN port, SIM cards, and Repeater. It has 6 external antennas to increase connectivity. When an amplifier is needed for extra stability of your internet services in remote locations, Spitz AX can connect to an extended GPS antenna or wired dome antenna of your choice. To secure your secured network gateway on a bumpy ride, you can easily deploy Spitz AX to your RV's interior walls.



Reliable and Uninterrupted RV Internet

Spitz AX (GL-X3000) is equipped with advanced features, including Multi-WAN, Load-balancing, and Failover, to ensure RV users experience quality internet connections when traveling in both rural and urban areas.

Multi-WAN

Multi-WAN

Enhanced Bandwidth and Network Stability

Spitz AX's Multi-WAN technology lets RV users utilize multiple connection methods, including Ethernet, Repeater, Cellular, and Tethering, at the same time, increasing the total bandwidth and staying connected when a single connection type is down.

Load-balancing

Load-balancing

Optimal Bandwidth Usage

Spitz AX's Load-balancing capabilities let users distribute bandwidth by custom proportion among multiple connection methods, prioritizing data consumption among preferred connection types, and minimizing network congestion.

Failover: Uninterrupted Connection

Failover

Uninterrupted Connection

Spitz AX supports Network Failover and the option to configure Failover priorities among multiple connection methods. If the primary connection fails, the router will automatically switch to the next connection method without interruption.

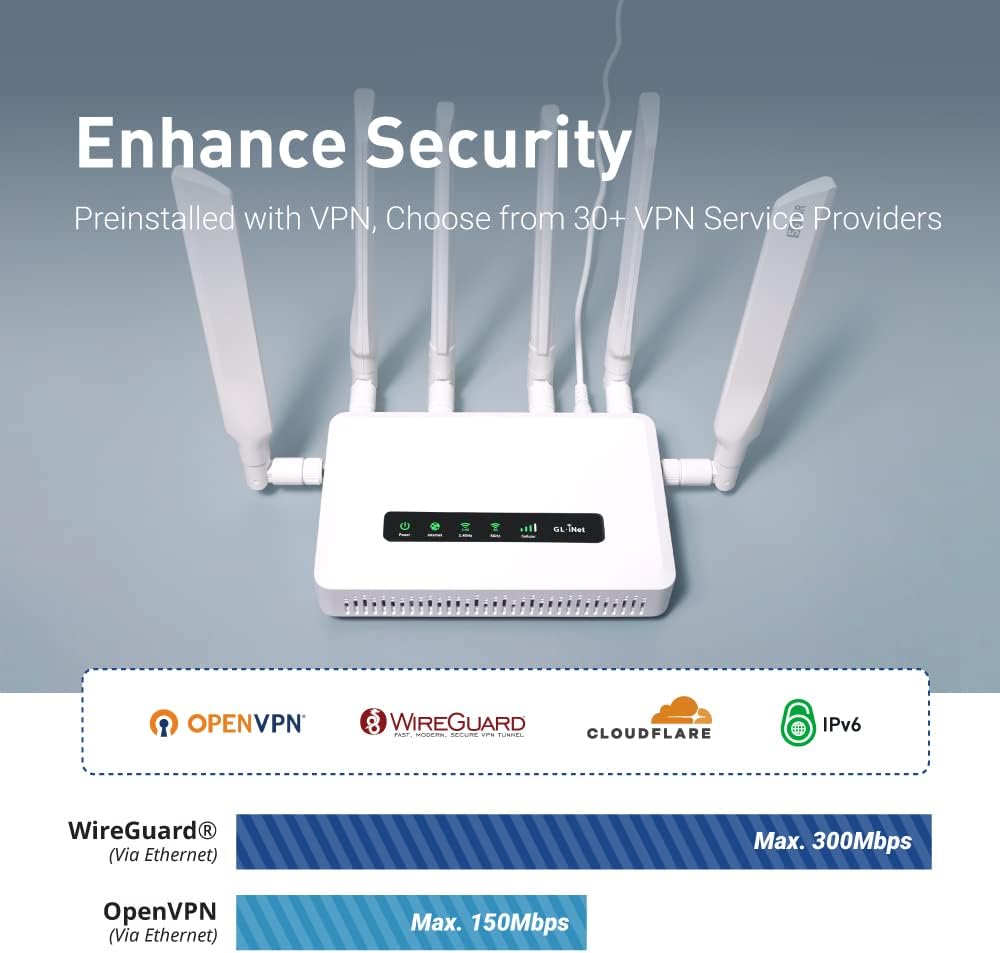

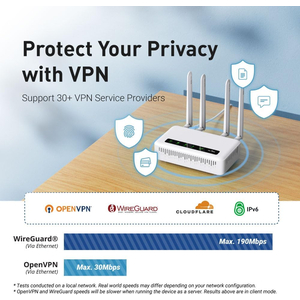

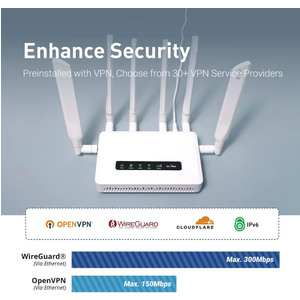

30+ VPN SERVICE PROVIDERS FOR YOUR SELECTION

Securing Your Internet In The Background

Spitz AX is pre-installed with OpenVPN and WireGuard® supporting 30+ VPN services. It automatically encrypts all network traffic within the connected network, including guest or client devices that are not capable of running VPN. Spitz AX can also host VPN servers and supports VPN Cascading, automatically forwarding data from its VPN server to the VPN client within the same device.

WireGuard® is a registered trademark of Jason A.Donenfeld.

WireGuard
Max. 300Mbps

OpenVPN
Max. 150Mbps
* Tests conducted on a local network. Real world speeds may differ depending on your network configuration.
* OpenVPN and WireGuard speeds will be slower when running the device as a server. Results above are in client mode.




Access Your Local Network Storage from Anywhere

Our local network storage feature supports SMB Protocol and WebDAV protocol. By plugging an external USB hard disc into the router, you can create a private network to store and share your documents. No matter for work or family, you can benefit from easy file access. Save space on your devices by storing photos and videos on the network.



Runs on OpenWrt 21.02 (Kernel version 5.4)

Spitz AX runs on GL.iNet's latest SDK4.0+ firmware and presents a user-friendly interface for common users to set up the router with minimal inputs, and an extended customization experience for advanced users to install plug-ins and applications. Spitz AX runs on GL.iNet's proprietary firmware based on OpenWrt (v21.02 Kernel version 5.4), supporting more than 5,000 ready-made plug-ins for customization. Simply browse, install, and manage packages with our no-code interface within the Admin Panel.



Everyday Scenario for Spitz AX

Remote Work

VPN cascading for you to access your company’s local server remotely


Rural Areas

Stable and long-range network connection using multi-WAN & antennas in your sizeable country house


Road Trips

Dual SIM cards to switch data services for your group in a snap


Co-working space

Secure your confidential data and network speed while using public Wi-Fi Services



lock Ads & Tracking for Free

AdGuard Home Ready on Router


Block ads for all client devices
Block online trackers and analytics by default
Block age-restricted content and services as needed
Customizable DNS filters
Keep sensitive online data safe
Enforce family browsing security



PREVENT MAN-IN-THE-MIDDLE ATTACKS

DNS over TLS & DNS over HTTPS

Spitz AX supports both DNS over TLS and DNS over HTTPS to enhance network privacy and security, providing users with the flexibility to choose between encryption depending on the network type. DNS over TLS uses encryption to secure DNS communications, while DNS over HTTPS uses the HTTPS protocol for an additional layer of security.











Remote Access and Management

Spitz AX comes with GL.iNet's GoodCloud remote device & networks management platform, providing users with data usage monitoring and technical support services with remote access to the device admin panel for maintenance and troubleshooting. It also enables batch device management, firmware updates, analytics and notifications for status updates, enabling users to manage devices efficiently.



DFS Certification in US, CA, EU and UK

Spitz AX is approved to use DFS (Dynamic Frequency Selection), letting the router's 5GHz network use additional frequencies normally reserved by military, satellite, and weather radar applications. The selection of additional channels can lower network congestion under high density network environments.



Empowering IoT Connectivity with Customizable BLE, Thread, and Zigbee Integration

The Spitz AX offers IoT customization options including BLE, Thread, and Zigbee protocols. While customization is a key aspect of the Spitz AX, it is important to note that this feature is exclusively available for bulk orders.



Compatible with GL.iNet eSIM Solution

Experience seamless connectivity with the Spitz AX, fully compatible with GL.iNet’s advanced eSIM solution, which supports both physical eSIM cards and integrated eSIM chips. eSIMs can be programmed remotely, offering unmatched convenience, flexibility, space-saving, and enhanced security. For consumers, this means effortlessly switching networks and avoiding roaming charges, while businesses benefit from centralized management, multi-device support, and secure data management.



Specifications:

  • CPU: MediaTek Dual-core MT7981A, @1.3GHz
  • Memory / Storage: DDR4 512 MB / EMMC 8GB
  • Protocol: IEEE 802.11a/b/g/n/ac/ax
  • Wi-Fi Speed: 574Mbps (2.4GHz), 2402Mbps (5GHz)

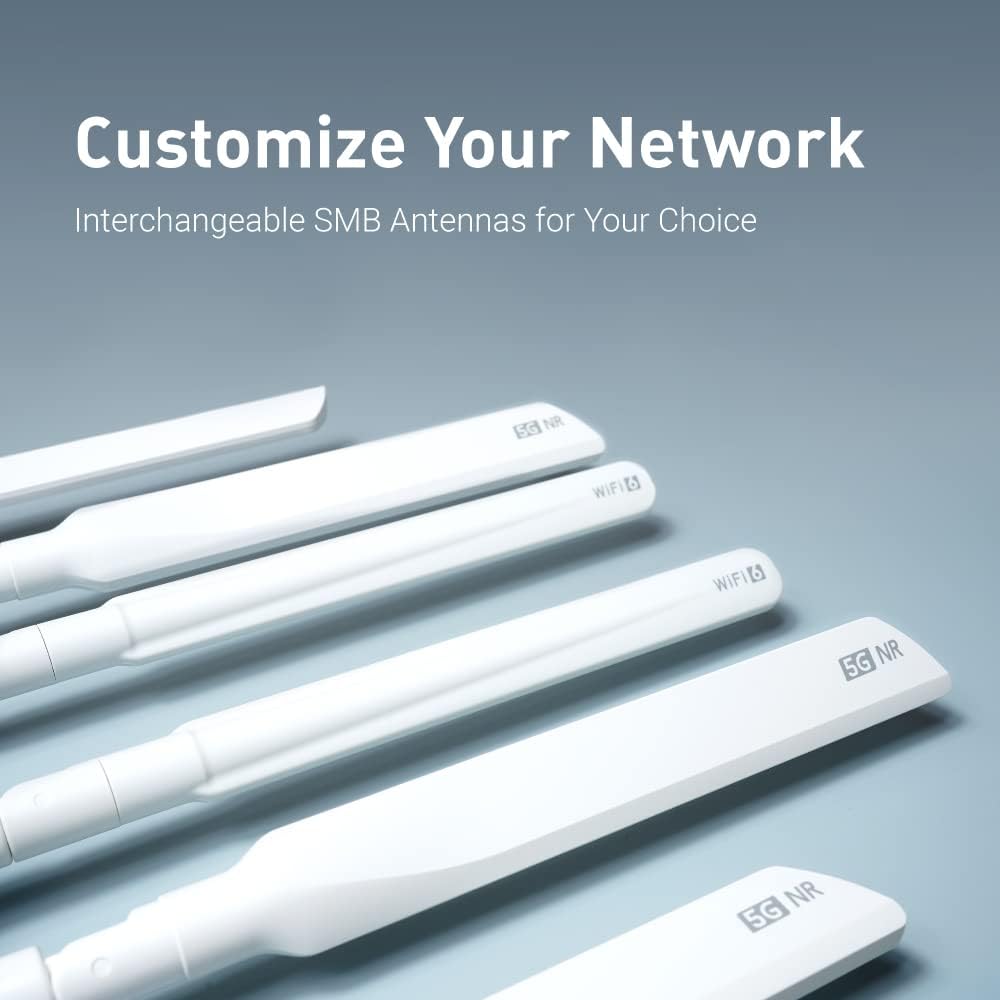

  • Antennas: 4 x Cellular Antennas (SMA, 600M~6GHz)， 2x Wi-Fi Antennas (PR-SMA, 2.4G~2.5GHz, 5.15~5.84GHz)
  • Cellular:  5G NR CAT19
  • Battery: N/A
  • TF Card Slot: Max.1TB
  • USB Port: USB 2.0 Type-A
  • Ethernet Port: 1 x WAN port, 1 x LAN port
  • Ethernet Speed: WAN Port: 10/100/1000/2500Mbps LAN Port: 10/100/1000Mbps
  • Power Input: DC5521, 12V/2.5A (5.5*2.1mm) [default adapter] / 24V
  • Power Consumption: <14W
  • Dimension / Weight: 155 x 95 x 36mm / 520 g

Package Content:

  • 1 x Spitz AX (GL-X3000) Router
  • 1 x Power Adapter
  • 2 x Wi-Fi Antennas
  • 4 x Cellular Antennas
  • 1 x Ethernet Cable
  • 1 x Warranty Card
  • 1 x User Manual
  • 1 x Wall-mount Kit
