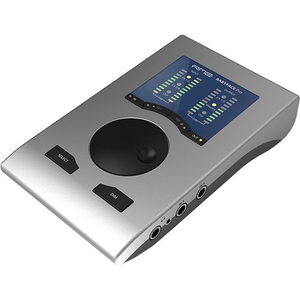

Tên thiết bị:  Card âm thanh RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface

Thương hiệu:  RME

Tình trạng: hàng mới, chính hãng 100%

Product Highlights

  • 4 Analog Inputs, 4 Analog Outputs

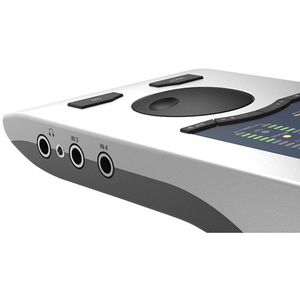

  • 3.5mm and 6.3mm Headphone Outputs
  • FPGA Chip for DSP
  • Integrated XLR Socket
  • Class Compliant for Mac, PC, Linux, iPad
  • SteadyClock Jitter Reduction
  • TOSLINK I/O
  • MIDI I/O Via Included Breakout Cable
  • +76 dB Gain, Adjustable in 1 dB Steps
  • TotalMix FX Hardware Mixer

RME Babyface Pro Overview

The RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface is designed for a wide variety of studio and live recording applications. Expertly crafted from a block of aluminum, this portable interface features a new XLR socket that integrates seamlessly into the housing. Parallel 6.3mm TRS and 3.5mm mini headphone jacks feature separate driver stages to match low and high impedance headphones.

The interface ships with the company's TotalMix FX, a software mixer available for Windows, Mac OS X and iOS on an iPad. When using the device with an iPad, an external power adapter must be used, as the iPad alone is unable to power the interface. The mixer software allows you to use the interface in a wide variety of situations, from simple mixing of signals to more complicated routing configurations.

The unit's FPGA-based DSP mixer adds a flexible 3-band parametric equalizer on all inputs and outputs. Combined with the unit's low latency AD/DA converters and the company's unique SteadyClock technology to reduce jitter, the interface offers a professional recording solution in a compact form factor.

FPGA Chip

Uses a field-programmable gate array (FPGA) which enables flexible DSP processing

Class Compliant

Enables native support by operating systems such as Windows, Mac OS X, Linux, and hardware like Apple's iPad, without the need for proprietary drivers

SteadyClock

Uses a highly efficient jitter reduction circuit to allow the converters to operate as if they were working with an internal clock at all times

TotalMix FX

Provides fully flexible mixing/routing for both studio and live applications via the company's hardware mixer



RME Babyface Pro Specs

Interface
Maximum Sampling Rate 192 kHz / 24-Bit
Connectivity

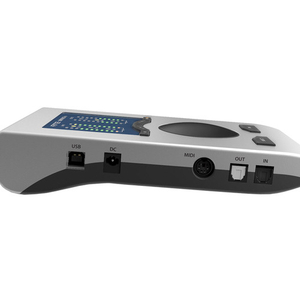

Host Connection 1 x USB Type-B (USB 2.0)

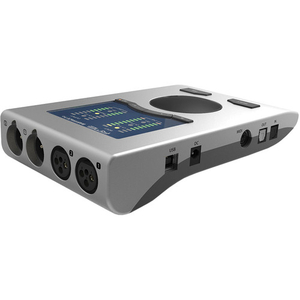

Analog I/O 2 x XLR 3-Pin Mic Input
2 x 1/4" Line/Hi-Z Input
2 x XLR 3-Pin Output
1 x 1/4" TRS Headphone Output
Digital I/O 1 x TOSLINK ADAT, S/PDIF Input
1 x TOSLINK ADAT, S/PDIF Output
1 x TOSLINK ADAT, S/MUX, S/MUX4, S/PDIF Input
1 x TOSLINK ADAT, S/MUX, S/MUX4, S/PDIF Output
MIDI I/O 1 x DIN 5-Pin Input (on Breakout Cable)
2 x DIN 5-Pin Output (on Breakout Cable)
Performance
Frequency Response Line Inputs:
5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
2 Hz to 92 kHz -1 dB (at 192 kHz)
Line/Hi-Z Inputs:
5 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
3 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
2 Hz to 92 kHz -1 dB (at 192 kHz)
Line Outputs:
0 Hz to 20.8 kHz -0.5 dB (at 44.1 kHz)
0 Hz to 45 kHz -0.5 dB (at 96 kHz)
0 Hz to 89 kHz -1 dB (at 192 kHz)
Mic/Line Inputs:
18 Hz to 20.8 kHz -0.1 dB (at 44.1 kHz)
7 Hz to 45.8 kHz -0.5 dB (at 96 kHz)
5 Hz to 92 kHz -1 dB (at 192 kHz)
Gain/Trim Range Mic/Line Inputs:
-11 dB to +65 dB
Max Input Level Line/Hi-Z Inputs:
+13 dBu (+4 dBu, Min Gain)
-5 dBu (-10 dBV, Max Gain)
Line Inputs:
+13 dBu (+4 dBu)
-5 dBu (-10 dBV)
Mic/Line Inputs:
+8 dBu (Min Gain)
+19 dBu (Min Gain, with Pad)
-57 dBu (Max Gain)
-46 dBu (Max Gain, with Pad)
Headphone Output Power 70 mW (Max)
Dynamic Range Line Outputs:
115 dB RMS
118 dBA
Impedance Headphone Outputs:
10 Ohms
2 Ohms
Line Inputs:
470 Kilohms
Line Outputs:
300 Ohms (Balanced)
150 Ohms (Unbalanced)
Mic/Line Inputs:
2 Kilohms (Balanced)
1 Kilohm (Unbalanced)
THD+N Line Outputs:
-102 dB / 0.0008%
Mic/Line Inputs:
< -104 dB / < 0.00063%
THD Headphone Outputs:
< 0.1%
Line Outputs:
-106 dB / 0.0005%
Mic/Line Inputs:
< -110 dB / < 0.00032%
SNR Line Inputs:
114 dB RMS
117 dBA
Mic/Line Inputs:
113 dB RMS
116 dBA
Channel Separation Line Outputs:
>110 dB
Mic/Line Inputs:
>110 dB
Digital Audio
Sample Rates Up to 200 kHz
Sync Sources ADAT, Internal, S/PDIF
Power
Power Requirements AC/DC Power Adapter (Not Included) or USB Bus Power
Power Consumption 2.9 W (Typical)
4.6 W (Maximum)
General
Operating Humidity 0 to 75%
Operating Temperature 41 to 122°F / 5 to 50°C
Physical
Dimensions 4.25 x 1.4 x 7.1" / 108 x 35 x 181 mm
Weight 1.5 lb / 680.0 g
Packaging Info
Package Weight 3.75 lb
Box Dimensions (LxWxH) 11.55 x 6.25 x 3.25"

In the Box

  • RME Babyface Pro 24-Channel 192 kHz USB Bus-Powered Audio Interface
