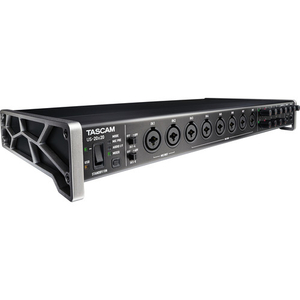

Tên thiết bị: Card âm thanh thu âm Tascam US-20x20 - USB Mic Preamps/Mixer
Model: Tascam US-20x20
Thương hiệu: Tascam Japan
Tình trạng: đóng hộp, hàng mới, chính hãng 100%
Thời gian đặt hàng: 1 - 2 ngày
Hình ảnh thiết bị như hình chụp
Product Highlights
- 20 Input/20 Output
- 8 Ultra-HDDA Microphone Preamps
- Phantom Power
- DSP Monitor Mixer
- 4-Band EQ, Compression, Reverb
- ADAT and Coaxial S/PDIF I/O
- MIDI I/O
- Wordclock I/O
- 24-Bit/192 kHz Resolution
- Mac OS X, Windows, iOS Compatible
Overview:
The Celesonic US-20x20 from Tascam is a single rack space USB audio MIDI interface that delivers twenty channels of analog and digital inputs and outputs. Eight of the analog inputs feature Ultra-HDDA microphone preamps that provide 56 dB of gain, suitable for a wide range of microphone types. Up to ten channels of digital I/O can be accessed via ADAT and S/PDIF connectors, while Wordclock is available for use with external clocks. MIDI I/O allows use with controllers and synthesizers, and sample rates up to 24-bit/192 kHz are supported.
The unit features three operation modes for maximum flexibility - audio interface, digital mixer, and eight-channel digital microphone preamp. The USB 3.0 interface uses class-compliant drivers for future-proof use with computers and tablets, while a built-in DSP mixer includes parametric EQ and compression on every channel, and a stereo reverb send for enhancing monitor mixes. The DSP mixer can store up to ten snapshots as scenes, making it easy to recall mixer settings, and can also be used as a live mixer or sub-mixer with computer control.
Two instrument-level inputs are provided for direct input of guitar or bass. The angled design of the interface makes desktop viewing and operation much easier than a flat box sitting on a table, and the separate headphone and line output volume controls allow for setting an optimum level when both powered monitors and headphones are connected. For users who prefer rack mounting the unit, the company includes adapters and hex keys.
-
- Ultra-HDDA (High Definition Discrete Architecture) microphone preamps with −125 dBu EIN
- Eight Ultra-HDDA microphone preamps with XLR/TRS connectors, plus two TRS inputs
- Ten 1/4" balanced analog outputs
- Three-mode switching between interface/microphone preamp/mixer
- Up to 24-bit/192 kHz recording
- 48V phantom power for all microphone inputs
- High-impedance inputs available
- Input level specifications boast a range of 56 dB for using dynamic microphones
- Two standard TRS headphone output jacks with 70 mW + 70 mW output power
- Separate controls for line and headphones output volumes
- MIDI input and output
- Low-latency monitoring via on-board DSP mixer
- DSP mixer with 4-band EQ and compression on each input channel (can be used in interface/mixer mode)
- On-board reverb effect ideal for monitoring on interface mode or PA/SR on mixer mode
- Patch bay allows outputs to be assigned freely (can be used in interface/mixer mode)
- Scenes can store DSP mixer settings (up to 10 + 1 scenes can be stored and namedï¼Â¿
- S/PDIF coaxial digital input/output connectors
- TOSLink optical digital multi-channel input/output connectors (supporting SMUX2 and SMUX4)
- BNC word clock input/output connectors
- Support for Mac and Windows OS
- USB 2.0 class compliant
- USB 3.0/2.0 computer connection (USB 3.0 requires Windows 10)
- Connect with iPads and other iOS devices
- Tough metal casing for durability
- Angled design provides for efficient usability on a desktop
- Rack-mount adapter included
- RoHS certified
UPC: 043774031184
Specifications:
| Resolution | |
|---|---|
| Sampling Frequency | 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| Bit Rate | 16-/24-bit |
| Analog Audio Inputs | |
|---|---|
| Microphone Input | Front Inputs 1 to 8, Balanced Connector: XLR-3-31(1: ground, 2: hot, 3: cold )Input Impedance: 2.4 kOhms Nominal Input Level, Maximum Gain: -68 dBu (0.0003 Vrms) Nominal Input Level, Minimum Gain: -12 dBu (0.195 Vrms) Maximum Input Level: +8 dBu (1.947 Vrms) Gain: 56 dB |
| Instrument Input | Front Inputs 1 and 2, Unbalanced (When Set to "INST" at LINE/INST Switch) Connector: 1/4" (6.3 mm) TS-jack (T: hot, S: ground) Input Impedance: 1 MOhms or more Nominal Input Level, Maximum Gain: -68 dBu (0.0004 Vrms) Nominal Input Level, Minimum Gain: -12 dBV (0.2512 Vrms) Maximum Input Level: +8 dBV (0.2512 Vrms) Gain: 56 dB |
| Line Input | Front Inputs 3 – 8, Balanced Connector: 1/4" (6.3 mm) TRS-jack (T: hot, R: cold, S: ground), Input Impedance: 10 kOhms Nominal Input Level, Minimum Gain: +4 dBu (1.228 Vrms) Maximum Input Level: +24 dBu (12.182 Vrms) Gain: 56 dB
Rear Inputs 9-10, Unbalanced (When Set to "INST" at LINE/INST Switch) Rear Inputs 9 – 10, Balanced (When Set to “+4 dBU” at LEVEL Switch) |
| Digital Audio Inputs | |
|---|---|
| Coaxial | Connector: RCA Format: IEC60958-3 (S/PDIF) Input Impedance: 75 ohms Input Level: 0.5 Vp-p/75 ohms |
| Optical | Connector: Optical (JEITA RC-5720C) Format: Multi-channel optical format (S/MUX4 is available in 88.2, 96, 176.4, 192 kHz) |
| Analog Audio Outputs | |
|---|---|
| Line Output | Outputs 1 -10, Balanced Connector: 1/4" (6.3 mm) TRS-jack (T: hot, R: cold, S: ground), Output Impedance: 100 ohms Nominal Output Level: +4 dBu (1.228 Vrms) Maximum Output Level: +24 dBu (12.277 Vrms) |
| Headphones | Connector: 1/4" (6.3 mm) TRS stereo phone jack Maximum Output Level: 70 mW +70 mW or more (THD+N 0.1% or less, 32 ohms loaded) |
| Digital Audio Outputs | |
|---|---|
| Coaxial | Connector: RCA Format: IEC60958-3 (S/PDIF)/IEC60958-4 (AES/EBU) Input Impedance: 75 ohms Output Input: 0.5 Vp-p / 75 ohms |
| Optical | Connector: Optical (JEITA RC-5720C) Format: Multi-channel optical format (S/MUX4 is available in 88.2, 96, 176.4, 192 kHz) |
| MIDI | |
|---|---|
| Connector | 5-Pin DIN |
| Format | Standard MIDI format |
| Wordclock | |
|---|---|
| Input | BNC (permissible frequency deviation at the time of external synchronization) Input Voltage: 2.0 Vpp to 5.0 Vpp Input Impedance: 75 ohms, +/-10% Input Level: +/-100 ppm |
| Output | BNC (with OUT/THRU select switch) Output Voltage: 2.0 Vpp to 5.0 Vpp Output Impedance: 75 ohms, +/-10% Sampling Frequency: 44.1, 48, 88.2, 96, 176.4, 192 kHz |
| USB | |
|---|---|
| Connector | USB 3.0/2.0 B type |
| Format | USB 3.0 SuperSpeed (5 Gbps) / USB 2.0 High Speed (480 Mbps) |
| Power | |
|---|---|
| Power | Dedicated AC adapter (GPE248-120200-Z, included) |
| Power Consumption | 20 W |
| Audio | |
|---|---|
| Frequency Response | Line Out (balanced): 44.1/48 kHz: 20 Hz to 20 kHz, +/-0.3 dB (JEITA) 88.2/96 kHz: 20 Hz to 40 kHz, +/-0.3 dB(JEITA) 176.4/192 kHz: 20 Hz to 80 kHz, +/-0.5 dB(JEITA) |
| THD | 0.005 % or less |
| S/N Ratio | 104 dB or more |
| Crosstalk | 100 dB or more |
| System Requirements | |
|---|---|
| Mac | Dual Core 2 GHz or faster OS X 10.8 (Mountain Lion), OS X 10.9 (Mavericks), 10.10 (Yosemite) USB 3.0 or 2.0 port 2 GB RAM or more Core Audio, Core MIDI 1280 x 800 screen resolution |
| Windows | Dual Core 2 GHz or faster Windows 7 (32-bit SP1, 64-bit SP1), Windows 8.0 (32-bit, 64-bit), Windows 8.1 (32-bit, 64-bit), Windows 10 (32-bit, 64-bit) USB 3.0 or 2.0 port 2 GB RAM or more USB Audio Class 2.0, ASIO 2.0, WDM (MME), MIDI (when using WDM driver, number of output channels from an application has a limitation of less than 8 channels) 1280 x 800 screen resolution |
| iOS | iOS 7 |
| General | |
|---|---|
| Operating Temperature | 41 to 95°F (5 to 35°C) |
| Dimensions (WxDxH) | 17.5 x 8.7 x 2.3" (445 x 222 x 59 mm) |
| Weight | 6.1 lb (2.8 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 9.35 lb |
| Box Dimensions (LxWxH) | 21.417 x 11.417 x 5.354" |
In the Box:
