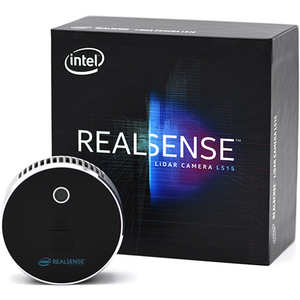

Tên thiết bị:  Intel RealSense LiDAR Camera L515

Model:  Intel RealSense LiDAR Camera L515

Thương hiệu:  Intel

Tình trạng: hàng mới, chính hãng 100%

  • Captures Depth Data with High Resolution
  • For 3D Scanning and Volumetric Captures
  • MEMS Mirror Scanning Technology
  • 1920 x 1080 Resolution at 30 fps
  • 1024 x 768 Resolution at 30 fps
  • LiDAR Depth Technology
  • 2.0 MP RGB Sensor (Rolling Shutter)
  • Operating Range of 0.8 to 29.5'
  • USB 3.1 Gen 1 Type-C Interface
  • Windows and Linux Compatible



Intel LiDAR L515 Overview

Designed for applications that require depth data at high resolution and high accuracy, such as volumetric measurements, 3D scanning, and more, the RealSense LiDAR Camera L515 from Intel uses proprietary MEMS mirror scanning technology, enabling better laser power efficiency compared to other time-of-flight technologies. With a power consumption of less than 3.5W for depth streaming, the L515 is a power-efficient and high-resolution LiDAR camera.

Made for indoor use, the L515 uses LiDAR depth and laser scanning technologies. Its depth camera also provides an output resolution of 1024 x 768 (XGA) with 23.6 million depth points per second, an operating range of 0.8 to 8.5' at 15% reflectivity, and 0.8 to 21.3'at 95% reflectivity. Also available is a 640 x 480 (VGA) resolution with 9.2 million depth points per second, an operating range of 0.8 to 12.8' at 15% reflectivity, and 0.8 to 29.5'at 95% reflectivity. Both resolutions operate at 30 fps with a 70 x 55° (±2°) field of view.

When working with its 1/6" RGB sensor, the L515 has a Full HD resolution of 1920 x 1080 at 30 fps, a 16:9 aspect ratio, rolling shutter, and a 69 x 42° (±1°) field of view. The lens itself offers an aperture of f/2, fixed focus, and a focal length of 1.88mm. It connects to your host Windows 10 or Ubuntu 16.xx/18.04 LTS system using a USB 3.1 Gen 1 Type-C interface via the included USB Type-C cable, and it has one 1/4"-20 tripod mount and two M3 mounting points. Also included is a tripod.

General Features

LiDAR

Light Detection and Ranging is a remote sensing technology that measures the distance to objects and targets using a combination of laser light and receivers. It uses an IR laser, a MEMS, an IR photodiode, an RGB imager, a MEMS controller, and a vision ASIC. The MEMS is used to scan the IR laser beam over the entire field of view (FOV). The L515 vision ASIC will process the data from the reflected beam captured by the photodiode and will output a depth point representing the accurate distance of a specific point in the scene from the camera. Aggregation of the depth points will generate a point cloud depth data representing the full scene.

Use Cases

Logistics and Measurement

The Intel RealSense LiDAR Camera L515 gives precise volumetric measurements of objects. Use the L515 on a handheld device or as part of an inventory management system for quickly counting objects on a shelf, or track every pallet that leaves your warehouse to make sure it's fully loaded with the right inventory.

Optimized for Robotics

While all Intel RealSense Depth cameras are necessary components in an intelligent autonomous robotic solution, the Intel RealSense LiDAR Camera L515 brings an additional level of precision and accuracy over its entire operational range. Quickly gauge complex objects and handle occlusion or objects behind others with ease for a new level of performance in bin picking or grasping.

3D Scanning

With 3D scanning, one of the biggest challenges is edge fidelity, making sure that objects don't bleed into the background or each other. The Intel RealSense LiDAR Camera L515 has edge fidelity in a class of its own, combined with a quality Full HD RGB camera and IMU for more robust handheld scanning solutions. Together, these features make the L515 a solid option for taking your 3D scanning to the next level.

User-Friendly Transition with the Intel RealSense SDK 2.0

Intel's open-source SDK 2.0 offers a variety of wrappers supporting popular programming languages and platforms. The latest addition to the Intel RealSense Technology family uses the same SDK as all other current-generation devices, allowing an easy transition from any of their other depth cameras. Develop once and deploy on any current or future Intel RealSense depth device.


Intel LiDAR L515 Specs

360 Stitched Video Recording
Number of Lenses 1
Camera per Lens
Sensor Resolution 2 MP
Optics per Lens
Focal Length 1.88mm
Maximum Aperture f/2
Minimum Focusing Distance 0.8' / 0.2 m
Recording per Lens
Video Format 1920 x 1080 at 30 fps
1024 x 768 at 30 fps
640 x 480 at 30 fps
Aspect Ratio 16:9
Recording
Built-In Mic No
Features
Tripod Mount 1/4" - 20
Input/Output Connectors
Outputs 1 x USB 3.0 Type-C
General
Power Adapter 4.5 - 5.5 VAC
Power Consumption Operating: 3.5 W
Operating Temperature 32 to 86°F / 0 to 30°C
Weight 3.53 oz / 100 g
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 4.6 x 4.6 x 2.4"



In the Box

  • Intel RealSense LiDAR Camera L515
  • Tripod
  • USB 3.1 Gen 1 Type-C Cable
  • Limited 1-Year Warranty
