Tên thiết bị:  Intel RealSense Tracking Camera T265

Model:  Intel RealSense Tracking Camera T265

Thương hiệu:  Intel

Tình trạng: hàng mới, chính hãng 100%

  • Precise Tracking,
  • For Robotics Navigation Developers, Etc.
  • Compact Design Weighs 1.9 oz
  • T261 Tracking Module/2 x Fisheye Sensors
  • IMU & Intel Movidius Myriad 2 VPU
  • 848 x 800 Sensor with Global Shutter
  • 8, 10-Bit Raw Monochrome at 30 fps
  • V-SLAM Algorithms Run Directly on VPU
  • Simple Integration & Standard Mounting
  • Use Alone or w/D400-Series Depth Camera

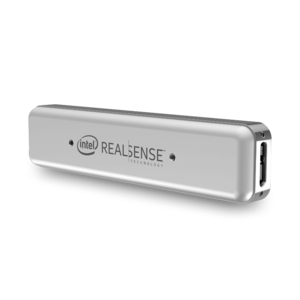

Intel T265 Overview

The RealSense Tracking Camera T265 from Intel offers visual simultaneous localization and mapping (V-SLAM) for robotics, drone, and augmented reality rapid prototyping uses. This compact camera features two fisheye lens sensors, an IMU, an Intel Movidius Myriad 2 VPU, and cross-platform, developer-friendly performance.

The T265's V-SLAM algorithms run directly on the VPU, resulting in minimal latency and extremely low power consumption. The T265 provides under 1% closed loop drift (under intended use conditions). It also produces <6ms latency between movement and reflection of movement in the pose, a response quick enough for highly sensitive applications such as augmented and virtual reality.

The T265 camera offers a plug-and-play USB connection which enables you to quickly start streaming pose data. Use the T265 camera by itself or pair it with a D400 series depth camera for occupancy mapping or collision avoidance and navigation in locations where GPS data is not available. The T265 camera incorporates an infrared cut filter which enables it to ignore the projected patterns from a D400 depth camera. The T265 also features standardized mounting sockets on the rear of the camera.

Simple Integration

The self-contained T265 offers a plug-and-play USB solution for streaming pose data for robot, drone, augmented reality, and virtual reality usage

Precision Tracking

Performance tests yielded under 1% closed loop drift under intended use conditions

Dual Fisheye Lenses

Combined 163°, ±5°, near-hemispherical field of view produces robust tracking, even at fast speeds

Low Power

Proprietary V-SLAM algorithms run directly on the camera, enabling it to operate at only 1.5W

Standalone or Combined Usage

Use alone or with a D400 series depth camera; an infrared cut filter enables the T265 to ignore projected patterns from a paired depth camera

Compact, Lightweight Form

The T265 measures 4.3 x 1 x 0.5" and weighs just under 2 oz

Intel T265 Specs

Tracking Module
Baseline 2.52" (±0.1") / 64mm (±0.15 mm)
Shutter Type Global
Field of View (FOV) 173°
Dimensions X: 3.68" / 93.35 mm (+0.15/-0.25 mm)
Y: 0.69" / 17.6 mm (±0.15 mm)
Z: 0.28" / 7.13 mm (±0.30 mm)
Measurement Analysis
Degrees of Freedom 6
Acceleration Range: ±g
Accelerometer Sample Rate: ±2000 deg/s
Gyroscope Sample Rate: 200 Hz
Image Sensor
Active Pixels 848 x 800
Aspect Ratio 1.06:1
Video Format 8-Bit, 10-Bit Raw
Filter Type IR Cut
Focus Fixed
Signal MIPI CSI-2, 2 x Lanes
Contacts 38-Pin
Max Skin Temperature 104° F / 40° C
Operating Temperature 32 to 95°F / 0 to 35°:C
Storage Temperature 32 to 104°F / 0 to 40°:C
Relative Humidity, Non-Condensing 90%
Dimensions (W x H x D) 4.3 x 1.0 x 0.5" / 108 x 24.5 x 12.5 mm
Flatness Tolerance 0.01" / 0.15 mm
Weight 2.1 oz / 60 g
Packaging Info
Package Weight 0.43 lb
Box Dimensions (LxWxH) 5.8 x 3.5 x 1.6"


In the Box

  • Intel RealSense Tracking Camera T265
  • T261 Module
  • Limited 1-Year Warranty
