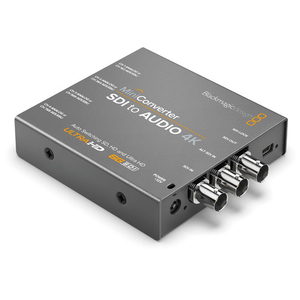

Tên thiết bị: Bàn trộn hình ảnh và âm thanh Blackmagic Design Mini Converter SDI to Audio 4K
Model: Blackmagic Design Mini Converter SDI to Audio 4K
Thương hiệu: Blackmagic Design
Tình trạng: hàng mới
- De-Embeds Audio from SDI Signal
- Single Link 6G-SDI Input
- Supports SD, HD, UHD 4K & DCI 4K Signals
- Automatic Input Signal Detection
- Redundant SDI Input
- 4x 1/4" Audio Output Jacks
- 4 Analog or 8 AES/EBU Audio Channels
- 24-Bit, 48 kHz Audio
- Control via DIP Switches or Software
- 12V Universal Power Supply Included
Blackmagic Design CONVMC Overview
The Mini Converter SDI to Audio 4K from Blackmagic Design allows you to de-embed four channels of analog audio or eight channels of AES/EBU digital audio from any SDI video signal. It features a 6G-SDI input that accepts resolutions up to Ultra HD (3840x2160) and DCI 4K (4096x2160), and provides four 1/4" audio jack connectors for outputting the embedded analog or digital audio channels to an audio monitor, mixer, or other audio equipment. The SDI signal is output over a single 6G-SDI connector, with the resolution and frame rate matching that of the original input source.
Using 6G-SDI technology, the Mini Converter supports UHD and DCI 4K resolutions at up to 30 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals, automatically detecting and switching between the different formats. A redundant SDI input is provided as an optional back up; with the converter switching over if the main SDI input is lost.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12VDC power supply is included with international socket adapters.
Additional Features
- 4:2:2 and 4:4:4 sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656 and ITU-R BT.601
Blackmagic Design CONVMC Specs
| SDI Video Input | 1 x SD/HD/3G/6G-SDI 1 x SD/HD/3G/6G-SDI-SDI redundant input |
| SDI Video Output | 1 x SD/HD/3G/6G-SDI |
| Audio Output | 4 x 1/4" jacks 4 channels of balanced analog audio, or 8 channels of AES/EBU balanced digital audio |
| Multi-Rate Support | Auto detection of SD, HD, 2K, UHD, and 4K signals |
| Reclocking | Yes |
| Format Support | SD: NTSC 525/29.97 and 525/23.98 PAL 625/25 HD: 720p 59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 2K: 2048x1080PsF 23.98/24/25 2048/1080p 23.98/24/25 UHD/4K 3840x2160p 23.98/24/25/29.97/30 4096x2160p 23.98/24/25/29.97/30 |
| SDI Compliance | SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE ST-2036, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | Switchable between SD, HD, 3G, and 6G-SDI |
| SDI Auto Switching | Automatically detects SD, HD, 3G, or 6G-SDI |
| SDI Video Sampling | 4:2:2, 4:4:4 |
| SDI Audio Sampling | 24-bit, 48 kHz |
| SDI Color Precision | 4:2:2, 4:4:4 |
| SDI Color Space | YUV, RGB |
| Settings Control | DIP switches or USB software for Mac OS X and Windows |
| Firmware Upgradeable | Via USB 2.0 |
| Power Supply | 12 VDC |
| Power Consumption | 8.4 W |
| Operational Voltage Range | 12 to 31 VDC |
| Operating Temperature | 32 to 104° F (0 to 40 ° C) |
| Storage Temperature | -4 to 113° F (-20 to 45 ° C) |
| Relative Humidity | 0 to 90% non-condensing |
| Dimensions | 4.52 x 3.63 x 0.90" (11.48 x 9.22 x 2.29 cm) |
| Weight | 7.61 oz (215.74 g) |
| Package Weight | 1.195 lb |
| Box Dimensions (LxWxH) | 5.8 x 5.65 x 2.6" |
In the Box
- Blackmagic Design Mini Converter SDI to Audio 4K
- 12VDC Power Supply with International Socket Adapters
- Limited 3-Year Warranty
