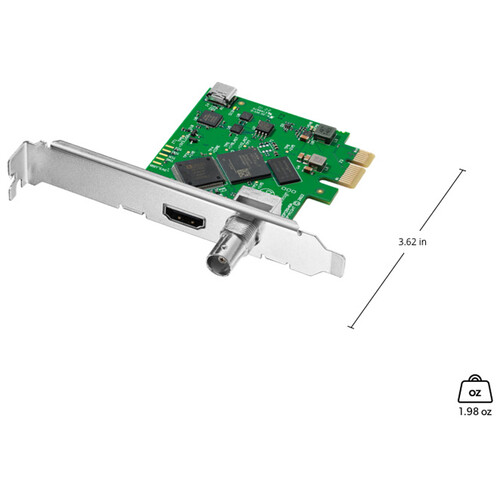

Tên thiết bị: Card ghi hình Blackmagic Design DeckLink Mini Recorder HD

Model:  BDLKMINIREC3G

Thương hiệu:  Blackmagic Design

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Hình ảnh thiết bị như hình chụp

Blackmagic Design Mini Recorder HD Overview



Record HD video over SDI or HDMI with the Blackmagic Design DeckLink Mini Recorder HD. This 1-lane PCIe slot playback card with SDI and HDMI inputs is, compatible with 1-, 4-, 8-, and 16-lane PCIe slots, allowing you to capture up to DCI 2K video over SDI, and HD video over HDMI 2.0.

The card is compatible with such software packages as Wirecast, vMix, and OBS. In addition, the card supports hardware-based real-time color space conversion. The card also automatically switches between SD and HD formats, so it'll handle all common video formats as well as HDR.

Note:
For use on a Mac, a Mac Pro is required with PCI Express slots.
PCIe Compatibility
PCIe 1-lane card, compatible with 1-, 4-, 8-, and 16-lane PCIe slots on Mac, Windows, and Linux (for use on a Mac, a Mac Pro is required with PCI Express slots)
Supported Software Applications
  • Wirecast
  • vMix
  • OBS
  • Cinergy Capture Pro
  • DevTek EasyMediaSuite
  • Glookast Capturer
  • Livestream Producer
  • Metus Ingest
  • Softron MovieRecorder
  • ToolsOnAir just:in
  • Burst Video WebClip2Go & [REC]Marker
  • Zoom
Supported Codecs
  • AVC-Intra
  • AVCHD
  • Canon XF MPEG2
  • Digital SLR
  • DV-NTSC
  • DV-PAL
  • DVCPRO50
  • DVCPROHD
  • DPX
  • HDV
  • HEVC
  • XDCAM EX
  • XDCAM HD
  • XDCAMHD422
  • DNxHR & DNxHD
  • AppleProRes 4444
  • Apple ProRes 422 HQ
  • Apple ProRes 422
  • Apple ProRes 422LT
  • Apple ProRes 422 Proxy
  • Uncompressed 8-bit 4:2:2
  • Uncompressed 10-bit 4:2:2
  • Uncompressed 10-bit 4:4:4
Hardware Frame Buffer
v210 (10-bit YUV), 2vuy (8-bit YUV), ARGB, BGRA (8-bit RGB), r210 (10-bit RGB), R12B, R12L (12-bit RGB)



Blackmagic Design Mini Recorder HD Specs

Inputs/Outputs
System Connection
(Length Unspecified)
Video Inputs
1x BNC (3G-SDI)
1x HDMI (2.0)
Audio Inputs
No
Simultaneous Multi-Input Support
Not Specified by Manufacturer
Format Support
Input Video Format
SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
SDI (8/10-Bit 4:2:2 YUV)
DCI 2K at 23.98/24/25/29.97/30/50/59.94/60 fps
DCI 2KPsF at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (8-Bit 4:4:4 RGB, YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
HDMI (12-Bit 4:4:4 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel
Standards
Video Standard Compliance
SMPTE 259M/274M/296M/424M/425M-A/425M-B/ST-2108-1
HDR Support
Not Specified by Manufacturer
Hardware
OS Compatibility
macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
Linux
Power
Power Consumption
Device: 3 W
Environmental
Operating Temperature
37 to 72°F / 5 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90% ()
Storage Humidity
0 to 90% (Non-Condensing)
General
Dimensions
3.62" / 91.95 mm
Weight
1.98 oz / 56 g
Packaging Info
Package Weight
0.29 lb
Box Dimensions (LxWxH)
5.6 x 5.3 x 1.2"
