Tên thiết bị: Card ghi hình Blackmagic Design DeckLink Mini Monitor 4K

Model:   BDLKMINIMON4K

Thương hiệu:  Blackmagic Design

Tình trạng: đóng hộp, hàng mới, chính hãng 100%

Hình ảnh thiết bị như hình chụp

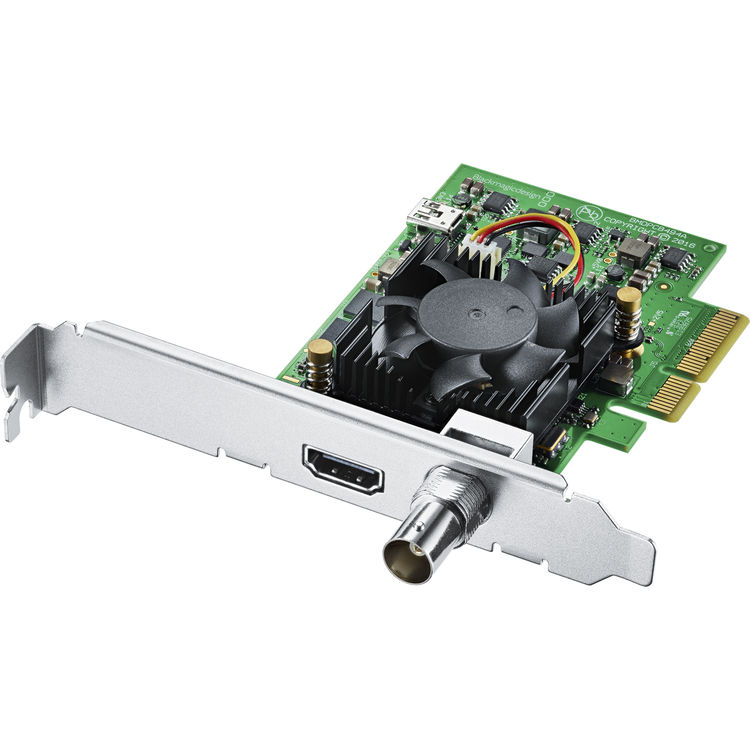

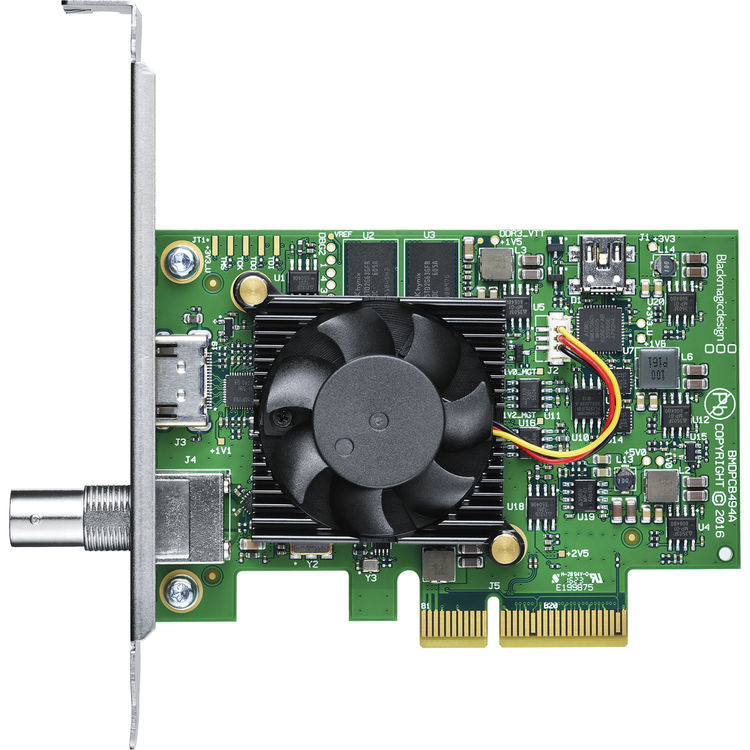

Blackmagic Design Mini Monitor 4K Overview



With the DeckLink Mini Monitor 4K from Blackmagic Design you can play out 4K content to high-resolution monitors and recorders in real-time from your compatible edit system. A 6G-SDI (backward compatible with SD, HD, and 3G variants) and HDMI 2.0 terminals are on the output panel of the card, so you can connect to professional broadcast equipment and displays or consumer monitors and televisions, respectively.

Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution output of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.

The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.

Processing Features
  • Color Space Conversion: Hardware-based, real-time color space conversion
  • HD Down-Conversion: Software-based down-conversion during video playback
  • Real-Time Effects: Supports real-time effects from Final Cut Pro X, Premiere Pro CC Mercury Playback Engine, and Avid Media Composer Effects
Software Support
DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Steinberg Nuendo, Photoshop CC, Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity, InfoCaster



Note: For updated software lists see the Blackmagic Design website



Blackmagic Design Mini Monitor 4K Specs

Inputs/Outputs
System Connection
PCIe 2.0 x4
Video Outputs
1x BNC (6G-SDI) Female
1x HDMI (2.0a) Female
Audio Outputs
No
Format Support
Output Video Format
SDI (8/10-Bit 4:2:2 YUV)
DCI 4K at 23.98/24/25 fps
UHD 4K at 23.98/24/25/29.97/30 fps
DCI 2K at 23.98/24/25 fps
DCI 2KPsF at 23.98/24/25 fps
SDI (8/10/12-Bit 4:4:4 RGB)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines
480i / 525 lines
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0)
DCI 4K at 23.98/24/25 fps
UHD 4K at 23.98/24/25/29.97/30 fps
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080PsF at 23.98/24/25/29.97/30 fps
1080i at 50/59.94/60 fps
720p at 50/59.94/60 fps
576i / 625 lines
480i / 525 lines
Embedded Audio
SDI: 16-Channel
HDMI: 8-Channel
Standards
Video Standard Compliance
SMPTE 259M/292M/296M/372M/425M/ST-2081
ITU -R BT.601/BT.656
HDR Support
:
Hardware
OS Compatibility
Windows 7 or Later
macOS 10.14 or Later
Linux
Power
Power Consumption
10 W
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 113°F / -20 to 45°C
Operating Humidity
0 to 90%
General
Dimensions
4.7" / 11.94 cm
Weight
3.17 oz / 90 g
Packaging Info
Package Weight
0.37 lb
Box Dimensions (LxWxH)
5.45 x 5.35 x 1.1"
